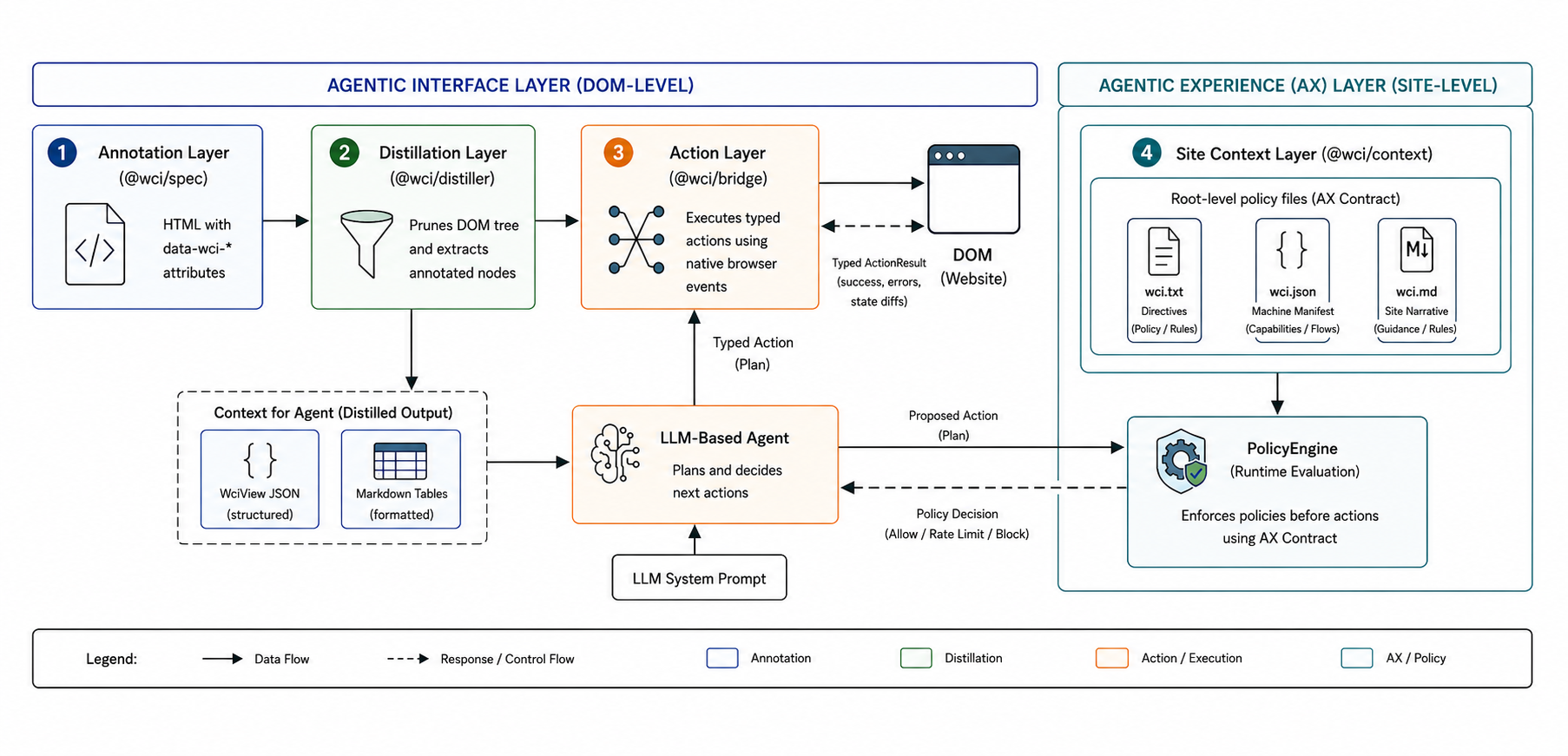

Architecture

WCI separates what the agent sees, what the site allows, and how actions execute into three cooperating layers.

flowchart TB
  subgraph html [HTML Layer]
    A[data-wci-* attributes]
    S[wci.txt / wci.json / wci.md]
  end

  subgraph distill [Distiller Layer]
    P[pruneDOM]
    J[JSON serializer]
    M[Markdown serializer]
  end

  subgraph bridge [Bridge Layer]
    D[dispatchAction]
    B[WciBridge]
    R[ActionResult]
  end

  subgraph ctx [Context Layer]
    L[WciContextLoader]
    E[PolicyEngine]
  end

  A --> P
  P --> J
  P --> M
  J --> LLM[LLM / Agent]
  M --> LLM
  S --> L
  L --> E
  LLM --> B
  B --> D
  D --> DOM[Live DOM]
  DOM --> R
  R --> LLM
  E -.->|scope checks| B

Layer 1 — Semantic HTML (@webcontextinterface/spec)

Standard DOM nodes carry machine-readable metadata:

• Identity — data-wci-id
• Role — action, form, display, nav, status, landmark
• Intent — data-wci-desc, data-wci-action
• State — data-wci-state (JSON snapshot)
• Guards — data-wci-precondition, data-wci-required

readWciNodeSpec(element) maps attributes to the WciNodeSpec TypeScript interface.

Layer 2 — Distiller (@webcontextinterface/distiller)

The distiller walks the DOM, collects annotated nodes, sorts by priority, and emits a compact WciView (JSON) or Markdown string suitable for LLM context windows.

Design goals:

• Drop decorative/layout nodes (data-wci-hidden)
• Scope to a landmark (scope option)
• Cap node count (maxNodes) for token budgets
• Optionally attach site summary metadata

Layer 3 — Bridge (@webcontextinterface/bridge)

The bridge translates agent decisions into real DOM interactions:

Action	DOM effect
click	.click(), updates state
fill	Native value setter + input/change events
select	<select>.value + change
check	checkbox checked + change
focus	.focus()
clear	Clears input value
submit	form.requestSubmit()
navigate	window.location.href

Every dispatch returns a typed ActionResult: success flag, before/after state, optional side effects on sibling nodes, and structured errors (NODE_NOT_FOUND, PRECONDITION_UNMET, etc.).

State changes also emit wci:state-change on document for observers.

Site context (@webcontextinterface/context)

Before touching a page, agents can load site policy:

1. HTTP headers (X-WCI-*)
2. Well-known URIs (/.well-known/wci/*)
3. Root fallbacks (/wci.txt, /wci.json, /wci.md)

PolicyEngine enforces allow/deny scopes, auth requirements, and human-confirmation scopes. Attach it to WciBridge via setPolicy so every dispatch is validated before DOM mutation.

Typical agent loop

1. WciContextLoader.load() → system prompt + policy
2. WciDistiller.distilJSON() → page tool context
3. LLM chooses { nodeId, action, value }
4. WciBridge.dispatch() → ActionResult
5. Re-distil or read sideEffects → next turn

Size and deployment

Packages are tree-shakeable ESM/CJS builds. Use only the layers you need:

• Read-only crawlers: @webcontextinterface/distiller + @webcontextinterface/spec
• In-page agents: add @webcontextinterface/bridge
• Multi-page flows: add @webcontextinterface/context
